Bio-IDENT PRO by AdBioTeK is a unique stand-alone biometric reader because of its capabilities and features. It uses 1:N recognition and identifies individuals using the «One Touch IDENT», system, so no keyboards, PINs or cards are needed.
Bio-IDENT PRO readers confirm or reject access authorization and/or people identification on a stand-alone basis. To be identified, users simply have to place the tip of their enrolled finger on the reader. Bio-IDENT PRO will identify the user’s fingerprint against the entire embedded database of templates –Mathematical Fingerprint Model– stored inside the reader.
The Bio-IDENT PROreader product line includes two models with capacity for up to 1900 and 4000 Fingerprints.
AdBioTeK - Smart, Safe and Expandable Solutions.
|Benefits:
• It works on a stand-alone basis.
• Automatic fingerprint identification by simply touching the reader with the finger. «One Touch IDENT»,
• 1:N user identification.
• Compatible with any Wiegand 26 communication control device.
• Intuitive user interface with buzzer sound signal and multi-color LEDs (red, green and yellow).
• Relay for door, turnstile or other device opening (additional).
• High Traffic Optical Reader with indoor durability.
• Capacitive reader (optional).
• User-friendly; «One Touch IDENT».
• Interface: Wiegand 26, TCP de Input/Output.
|Applications and Integrations:
• Access Control.
• Time & Attendance.
• Turnstiles, Bio-OPTICAL PASS (Optical Turnstile).
• Doors.
• Access to ATMs.
• Mobile Identification Systems.
• Access to security vaults.
|
|
Bio-IDENT PRO |
| |
Size
Bio-IDENT PRO:
Type of Digital Reader:
Resolution:
Sensor Area:
Image Size (pixels):
Specifications
Security:
Template Size:
Communications:
Speed:
Enrollment Time:
Identification Time:
False Acceptance:
False Rejection Rate:
Template Maximum Capacity:
Encryption:
Power and Energy Used
Idle:
Enrollment/ Verification:
Power on:
Voltage:
Operating Temperature:
Standard RS485 Maximum Distances
Among all readers:
Between reader and PC:
Mounting Height
Height from the ground: |
140 x 60 x 80 mm. - 5.51" x 2.36" x 3.15" (in) (approximately)
High quality optical reader (Indoors)
High quality capacitive reader (Indoors) Optional
500 DPI / 256 Gray. (Optical).
480 DPI / 256 Gray. (Capacitive-Optional).
16.0 x 19.0 mm. (Optical).
16.0 x 23.4 mm. (Capacitive-Optional).
280 x 320 (Optical).
256 x 384 (Capacitive-Optional).
5 level programmable.
400 Bytes. (approximately)
Wiegand 26, TCP IN/OUT.
10/100 MB.
Less than 3 seconds.
Real Time.
0.20% (Programmable).
0.10% (Programmable).
Bio-IDENT 1900 - 1900 Templates.
Bio-IDENT 4000 - 4000 Templates.
256 BIT AES.
280 mA.
340~ 370 mA
220 ~ 260 M S
9~15 Volt. VCD.
1º C a 45º C. - 33º F to 113º F.
1200 meters - 3940 ft.
1200 meters - 3940 ft
Min. 110 cm - 3.61 ft. / Max. 125 cm - 4.10 ft.
|
|
|
| |
| Bio-ADMIN TA | Bio-ADMIN TA by AdBioTeK is a one-of-a-kind, powerful Administration and Customization Software for our line of Bio-IDENT, Bio-IDENT PRO, Bio-IDENT TA, Bio-IDENT TT&A, Bio-HORUS/ Bio-HORUS PROX Control Panel, and Bio-PRINTER printers. . It is easy to install and customize, allowing you to manage the entire network of readers and/ or panels, including the possibility of viewing third party devices, such as control panels, proximity readers, etc.
AdBioTeK - Smart, S... | | |
| Bio-TIME WORK | Worked Hours Calculation System
Bio-TIME WORK was developed to provide users with a powerful «tool» to analyze «worked hours», and facilitate the preparation of information to be exported to any Payroll System.
It is very easy to learn and adapt, and features nice screenshots and windows that allow performing any type of operations very easily.
Data centralization also simplifies the job and control for Human Resources (HR)/ Company Staff Departments. By creating ... | | |
| Bio-REPORTES WEB | By using a Web Server, Bio-REPORTES WEBdeveloped by AdBioTeK, you to make queries from any PC/ Console for Individuals and/ or Recorded Events (Access Events-System) centrally stored.
The new concept of Reports via a Web Server offered by AdBioTeK, allows «customizing» any desired reports and even printing and exporting them in different formats, such as TXT, MS EXCEL, MS WORD, OpenOffice Calc, OpenOffice Write, for subsequent data processing and p... | | |
|
|
| |
 | | Bio-NET | Bio-NET by AdBioTeK, is a «door opener» plate with dry contact output that allows you to control the opening of doors or other devices, such as turnstiles, garage access gates, server racks, safes, refrigerators, etc. Simple a... |
|
 | | Bio-IDENT DESKTOP USB | Bio-IDENT DESKTOP USB is a USB reader connected to a computer, which allows for convenient Fingerprint enrollment at your Staff/ Human Resources Office desk, as well as entry of personal data and individual picture.
Bio-IDENT... |
|
 | | Bio-IDENT DESKTOP TCP | Bio-IDENT DESKTOP TCP is a TCP reader –connected to a computer or network port–, which allows for convenient fingerprint enrollment at your Staff/ Human Resources Office desk, as well as entry of personal data and individual picture.... |
|
 | | Bio-ACCESS -Plate- | AdBioTeK's Bio-ACCESS is a «door opener» plate developed for the control and opening of devices such as turnstiles, garage access gates, server racks, safe deposit boxes, refrigerators, etc. Simple and easy to install... |
|
 | | Wall Metal Enclosure - Bio-IDENT Family | AdBioTeK has developed a number of «accessories» for each specific need, allowing for proper and neat installation of our readers.
This metal, baked-on paint cabinet is designed to be embedded on the wall and house a Bio-IDENT/... |
|
|
|
|
|
| |

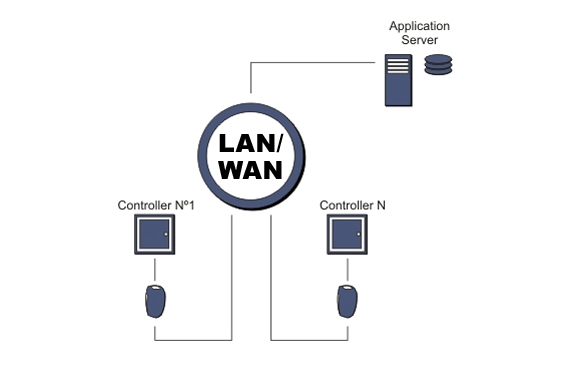

| Solution A |  | | Connect Bio-IDENT PRO access control panels or third time and attendance. | | |
|
|
| |

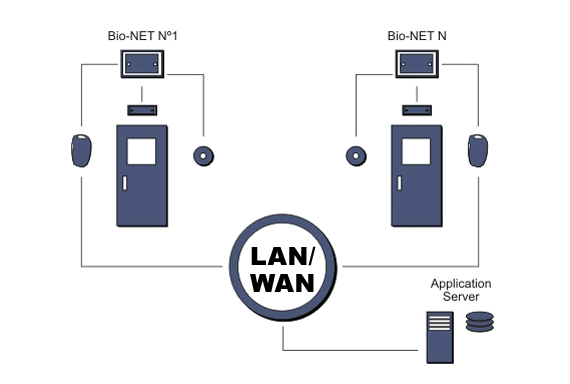

| Solution Bio-NET |  | Connecting Bio-IDENT PRO opener Bio-NET.
| | |
|
|
|
|
