High performance makes AdBioTeK´s Bio-IDENT TT&A H unique among Autonomous keypads for Access Control and/or Time & Assistance. This product was exclusively developed for being used in specific cases, such as controlling a few people and managing them with a single software (Bio ADMIN TA) centralizing this solution with biometric readers and autonomous keypads with display.
This product is manufactured in DWG steel sheet, baked Epoxi textured paint for extreme use. Bio-IDENT TT&A H confirms or rejects Access authorization and/or people identification autonomously. To gain access user must only key in the respective code and personal password.
Bio-IDENT TT&A H keypad counts with a fully programmable LCD display wich allows visualization of Surname and Name of identified people, and type, date, hour of events.
Bio-IDENT TT&A H presents two models with different storage capacity: 2000 and 4000 users. |
|
Bio-IDENT TT&A H |
| |
Dimensions
Case:
Measures:
Painting:
Lock:
Specifications
Comunication:
Speed:
Identification time:
Events buffer:
User maximun storage capacity:
Time zones:
Holidays management:
Automations management:.
Bell management:
Bio-DUAL ACCESS System:
Recognition method:
Direction choice (keys):
LCD Display:
Energy and consumption
Active:
Enroll/ Identification:
Power on:
Voltage:
Operating temperature:
Placement height
From the floor: |
1.6 mm thickness DWG steel sheet
250 x 360 x 110 mm.
baked textured paint, high traffic ready.
yes.
RS-485, Wiegand 26 IN/OUT, TCP.
TCP 10/100 MB, RS485 up to 115200 bps.
real-time identification.
8000 (autorecyclable)
4000.
up to 32400 zones-31 holidays.
Yes.
Yes.
Yes.
Yes.
Code + personal password – PIN.
IN, OUT, PARTIAL IN, PARTIAL OUT.
80 characters (4 lines x 20).
500 M Amp.
130~160 M Amp.
220 ~ 260 M Sec.
9 ~ 12 Volts.
-5 C a 50 C.
min. 110 cm / max. 125 cm.
|
|
|
| |
| Bio-TIME WORK | Worked Hours Calculation System
Bio-TIME WORK was developed to provide users with a powerful «tool» to analyze «worked hours», and facilitate the preparation of information to be exported to any Payroll System.
It is very easy to learn and adapt, and features nice screenshots and windows that allow performing any type of operations very easily.
Data centralization also simplifies the job and control for Human Resources (HR)/ Company Staff Departments. By creating ... | | |
| Bio-ADMIN TA | Bio-ADMIN TA by AdBioTeK is a one-of-a-kind, powerful Administration and Customization Software for our line of Bio-IDENT, Bio-IDENT PRO, Bio-IDENT TA, Bio-IDENT TT&A, Bio-HORUS/ Bio-HORUS PROX Control Panel, and Bio-PRINTER printers. . It is easy to install and customize, allowing you to manage the entire network of readers and/ or panels, including the possibility of viewing third party devices, such as control panels, proximity readers, etc.
AdBioTeK - Smart, S... | | |
| Bio-REPORTES WEB | By using a Web Server, Bio-REPORTES WEBdeveloped by AdBioTeK, you to make queries from any PC/ Console for Individuals and/ or Recorded Events (Access Events-System) centrally stored.
The new concept of Reports via a Web Server offered by AdBioTeK, allows «customizing» any desired reports and even printing and exporting them in different formats, such as TXT, MS EXCEL, MS WORD, OpenOffice Calc, OpenOffice Write, for subsequent data processing and p... | | |
|
|
|
|
| |

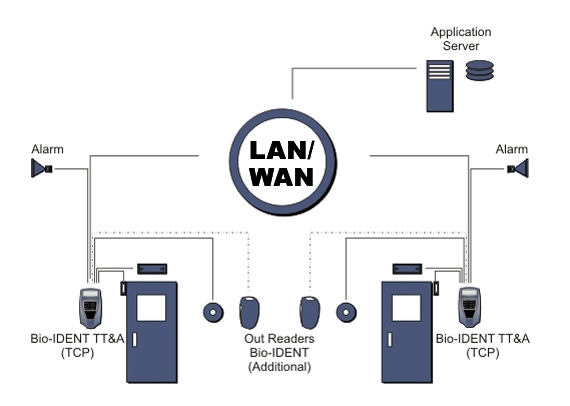

| Solution A |  | | . | | |
|
|
| |

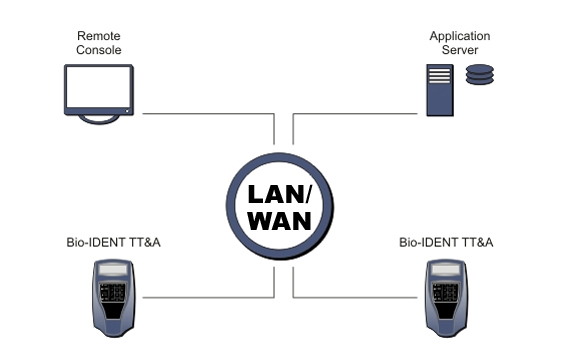

| Solution B |  | | . | | |
|
|
|
|
