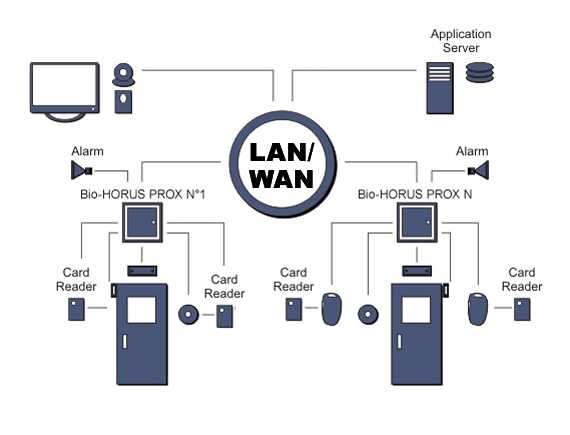

AdBioTeK's Bio-HORUS PROX T is a megapanel for centralized controlling. It is able to handle up to ten full access. The panel is specifically developed for connecting Bio-IDENT biometric readers and proximity card readers.
To obtain «access» permission the person must rest the finger against Bio IDENT reader, get the card closer to the proximity reader –for proximity readers only- or get the card closer to the proximity reader and put the fingertip of an enrolled finger against Bio-IDENT V reader getting a real-time recognition of the user´s fingerprint in the internal database stored in the reader itself, sending an ID code to Bio-Horus Prox T.
When receiving an identified person's ID –proximity or biometric-, Bio-HORUS PROX T will verified the access permission, (time zones-access permission) confirming or rejecting autonomously the access authorization.
Each access controlled by Bio HORUS PROX T counts with power supply, UPS in case of energy failure and independent data update. Save in cards and/or keys administration, limit access only to authorized persons.
Bio-ADMIN TA software will let you configure and parameterize independently each one of the access under control.
|Ideal for installing
On servers or control rooms. |
|
Bio-HORUS PROX T |
| |
Size
Case:
Measures:
Painting:
Lock:
Door:
Access quantity:
Entry/ exit:
Events buffer:
User maximun capacity, Proximity:
User maximun capacity, Biometric:
Time zones per access:
Comunication standard:
Speed:
Holiday management:
Automatization management:
Bell management:
Bio-DUAL ACCESS system:
Energy and consumption
Active:
Power on:
Voltage:
Operating temperature:
Energy distributor board
Model:
Power on switch:
Board quantity:
Outputs per board:
Main Fuse:
Fuse per output:
State LED indicator per output:
UPS charger
Model:
GEL Battery:
Autonomy:
Voltage Regulation and filtering:
Shotcircuit protecion:
Termic protection and compensation:
Automatic changing in case of energy failure:
Fuse protection for battery charger:
AC power input LED indicator:
Charging state DC power otuput LED indicator:
Protection against polarity inversion: |
1.6 mm thickness DWG steel sheet.
650 x 660 x 260 mm.
baked textured for high traffic.
yes.
left opening way.
up to 10 (full control).
up to 20 entry.
online- unlimited/ offline 80.000 (8.000 per access).
655.360 (65.536 per access)
40.000 (4.000 per access)
up to 32.400 zones – 31 holidays
RS-485, Wiegand 26 IN/OUT, TCP.
TCP 10/100 MB
yes.
yes.
yes.
yes.
6 Amp. (10 access).
220~260 M Seg.
9~12 Volt. VCD.
0º C ~ 50º C.
Enforcer PD-9PSQ.
yes.
2.
9.
yes. 5 Amp @ 250VAC.
yes. 1,1 Amp. @ 250VAC.
yes.
Enforcer ST-2406-5 AQ.
yes – 12 Volt – 28 Amp.
8 hours.
yes.
yes.
yes.
yes.
yes.
yes.
yes.
yes.
|
|
|
| |
