Bio-IDENT by AdBioTeK, a unique stand-alone biometric reader because of its capabilities and features. It uses 1:N recognition and identifies individuals using the «One Touch IDENT», system, so no keyboards, PINs or cards are needed.
Bio-IDENT readers confirm or reject access authorization and/or people identification on a stand-alone basis. To be identified, users simply have to place the tip of their enrolled finger on the reader. Bio-IDENT will identify the user’s fingerprint against the entire embedded database of templates –Mathematical Fingerprint Model– stored inside the reader.
Bio-IDENTReader product line includes two models with capacity for up to 1900 and 4000 Fingerprints.
AdBioTeK - Smart, Safe and Expandable Solutions.
|Benefits:
• It works on a stand-alone basis.
• Automatic fingerprint identification by simply touching the reader with the finger. «One Touch IDENT».
• 1:N user identification.
• Compatible with any Wiegand 26 communication control device.
• Intuitive user interface with buzzer sound signal and multi-color LEDs (red, green and yellow).
• Relay for door, turnstile or other device opening (additional).
• High Traffic Optical Reader with indoor durability.
• Capacitive reader. (optional)
• User-friendly; «One Touch IDENT».
• Interface: Wiegand 26, RS-485 input/output.
|Applications and Integrations:
• Access Control.
• Time & Attendance.
• Turnstiles, Optical Tunstile (Bio-OPTICAL PASS).
• Doors.
• Access to ATMs.
• Mobile Identification Systems.
• Access to security vaults.
|
|
Bio-IDENT |
| |
Size
Bio-IDENT:
Type of Digital Reader:
Resolution:
Sensor Area:
Image Size (pixels):
Specifications
Security:
Template Size:
Communications:
Speed:
Enrollment Time:
Identification Time:
False Acceptance:
False Rejection Rate:
Template Maximum Capacity:
Encryption:
Network:
Power and Energy Used
Idle:
Enrollment/ Verification:
Power on:
Voltage:
Operating Temperature:
Standard RS485 Maximum Distances
Among all readers:
Between reader and PC:
Mounting Height
Height from the ground: |
140 x 60 x 80 mm. - 5.51" x 2.36" x 3.15" (in) (approximately)
High quality optical reader (Indoors)
High quality capacitive reader (Indoors) Optional
500 DPI / 256 Gray. (Optical).
480 DPI / 256 Gray. (Capacitive-Optional).
16.0 x 19.0 mm - 0.63" x 0.75" (in) approximately Optical).
16.0 x 23.4 mm - 0.63" x 0.92" approximately (Capacitive-Optional).
280 x 320 (Optical).
256 x 384 (Capacitive-Optional).
5 level programmable.
400 Bytes. (approximately)
Wiegand 26, RS485 IN/OUT.
Up to 115200 bps.
Less than 3 seconds.
Real Time.
0.20% (Programmable).
0.10% (Programmable).
Bio-IDENT 1900 - 1900 Templates.
Bio-IDENT 4000 - 4000 Templates.
256 BIT AES.
Up to 64 Readers. (Optional expansion).
70 mA.
130 ~ 160 mA
220 ~ 260 M S
9~15 Volt. VCD.
1º C a 45º C. - 33º F to 113º F
1200 meters - 3940 ft.
1200 meters - 3940 ft
Min. 110 cm - 3.61 ft. / Max. 125 cm - 4.10 ft.
|
|
|
| |
| Bio-ADMIN | Bio-ADMIN by AdBioTeK is a one-of-a-kind, powerful Administration and Customization Software for our line of products Bio-IDENT and Bio-ACCESS.
It is easy to install and customize, allowing you to manage the entire network of readers and/or panels, including the possibility of viewing third party devices, such as control panels, proximity readers, etc.
AdBioTeK - Smart, Safe and Expandable Solutions.
|Benefits:
• Very easy to install.
• User-frien... | | |
|
|
| |
 | | Wall Metal Enclosure - Bio-IDENT Family | AdBioTeK has developed a number of «accessories» for each specific need, allowing for proper and neat installation of our readers.
This metal, baked-on paint cabinet is designed to be embedded on the wall and house a Bio-IDENT/... |
|
 | | Plus Metal Box - Bio-HORUS | AdBioTeK has developed a number of «housing cabinets/ accessories» for each specific need, allowing for proper and neat installation of our products.
This metal baked-on paint cabinet is designed to house a Bio-HORUS, device, ... |
|
 | | Metal box - Bio-HORUS | AdBioTeK has developed a number of «housing cabinets/ accessories» for each specific need, allowing for proper and neat installation of our products.
This metal baked-on paint cabinet is designed to house the
Bio-HORUS de... |
|
 | | Bio-NET | Bio-NET by AdBioTeK, is a «door opener» plate with dry contact output that allows you to control the opening of doors or other devices, such as turnstiles, garage access gates, server racks, safes, refrigerators, etc. Simple a... |
|
 | | Bio-IDENT TA | Bio-IDENT TA by AdBioTeK is a unique stand-alone biometric reader because of its capabilities and features. It uses 1:N recognition and identifies individuals using the «One Touch IDENT» system, so no keypads, P... |
|
 | | Bio-IDENT DESKTOP USB | Bio-IDENT DESKTOP USB is a USB reader connected to a computer, which allows for convenient Fingerprint enrollment at your Staff/ Human Resources Office desk, as well as entry of personal data and individual picture.
Bio-IDENT... |
|
 | | Bio-HORUS | Bio-HORUS by AdBioTeK is an Access Control Panel specifically developed to connect to our Bio-IDENT product line of biometric readers.
A person wishing to be allowed «access» must simply place the tip of his/her enro... |
|
 | | Bio-ACCESS -Plate- | AdBioTeK's Bio-ACCESS is a «door opener» plate developed for the control and opening of devices such as turnstiles, garage access gates, server racks, safe deposit boxes, refrigerators, etc. Simple and easy to install... |
|
 | | RS485/ TCP Adapter | The RS485/ TCP Adapter is a universal converter plate that converts the RS485 format –half duplex– into TCP.
The RS485/ TCP Adapter allows you to unify and convert one or more devices manufactured by ... |
|
 | | RS485/ RS232 Adapter | The RS485/ RS232 Adapter is a universal converter plate that converts the RS485 format –half duplex– into the RS232 format of a computer.
The RS485/ RS232 Adapter allows you to unify and convert one o... |
|
|
|
|
|
| |

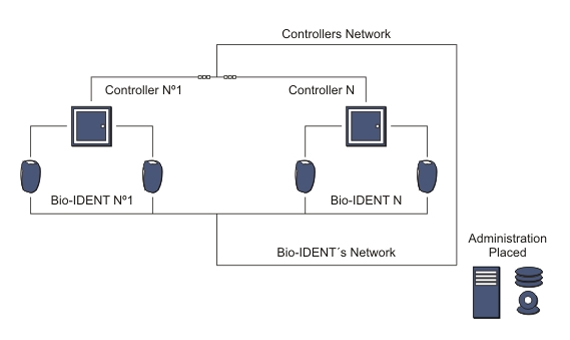

| Solution A |  | Data Networking Solution «Separated» between controllers and readers Bio-IDENT.
Access Control System «Two-way» with Bio-IDENT Reader.
(Communication Bio-IDENT is Wiegand-26). | | |
|
|
| |

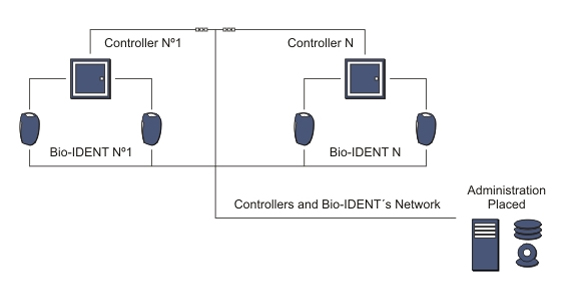

| Solution B |  | Data Networking Solution to «Shared» between controllers and readers Bio-IDENT. (RS-485 Half Duplex 3 lines).
Access Control System with Bio-IDENT form bidirecional (Communication between drivers of «Control Panel» and Bio-IDENT is Wiegand-26). | | |
|
|
| |
| Solution Bio-ACCESS |  | In the case of «Opening doors» with no control of events, you can use the Bio-ACCESS or the Bio-NET.
This solution is very simple to connect with readers Bio-IDENT.
| | |
|
|
| |

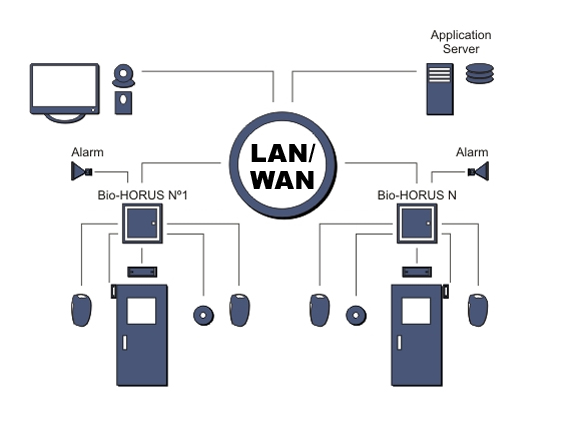

| Solution Bio-HORUS |  | | If necessary the «Control Events», you can use the Bio-HORUS. The Control Panel has TCP. | | |
|
|
|
|
